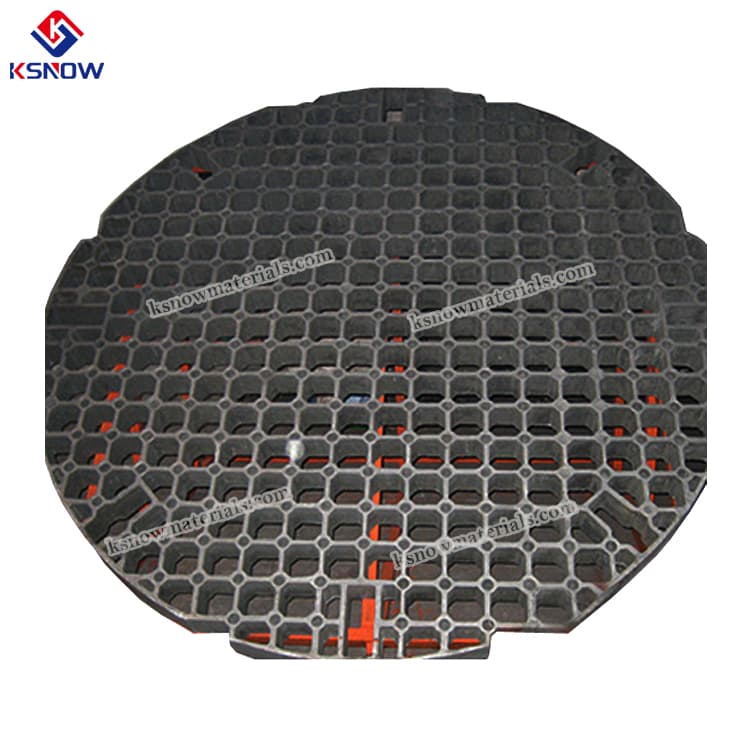

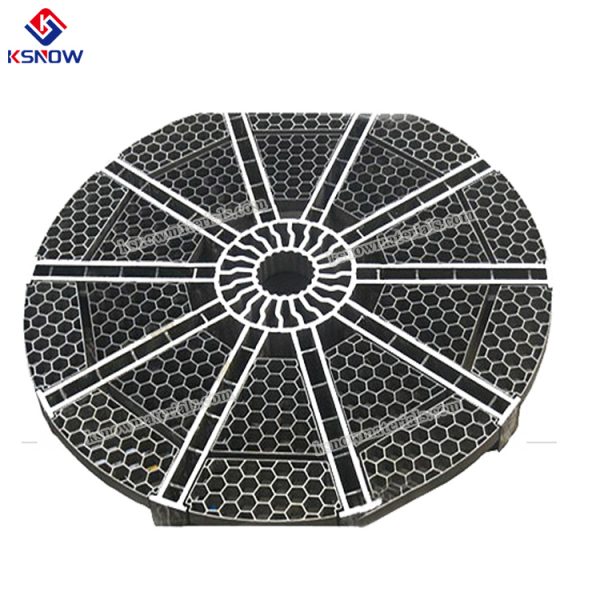

Heat Treatment Fixtures


1.Production proces:wax lost process,investment process,EPC process&sand process.

2.We make heat-resistant steel parts,such as furnace grates,furnace bed plates for cement works,steel mills.

3.We supply finished heat castings with heat-treated and machined condition if necessary.

4.We can produce heat steel castings as per GB/T20878,DIN17440,DIN17224,AISI,ASTM,JIS SUH35,NF A35-572/584,BS970,BS1449,ISO683/13.

Application: Auto,Precision Gear,Heat-treating industries.


1.Resistance to high temperature:Up to 1300℃;

2.A large number of Existing Patterns of fixture for Standard.Famous Brand Heat-treatment Furnaces.

3.Rich experience in design of Trays&Baskets to suit the secific work condition.

4.More production process available:Wax lost cast process,EPC cast process,Sand cast process.

Special Features:

  1. We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand Cast Process.
  2. We can supply finished High Temperature Material Trays Fixture with heat-treatment and machining process.
  3. We can produce heat steel castings as per GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS SUH35,NF A35- 572/584,BS970,BS1449,ISO 683/13.

Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.

Quality Level: As per National Standard & International Standards.

Chemical Composition(1.4971):

C Si Mn Ni P S Cr Mo W Co N Nb
0.08-0.16 max1 max2 19-21 max0.035 Max0.015 20-22.5 2.5-3.5 2-3 18.5-21 0.1-02 0.75-1.25
